How to Procure and Install FG300 Impact Resistant Delineators: A Step-by-Step Guide

Step 1: Decide on What Model and Colour Post You Require

FG300 delineators can be utilised at toll gates, high-traffic zones and early alert zones. This kind of surface mount delineator post is available in three different applications. So, before buying the post, it’s important to determine the model you require. These general descriptions should help you with this:

• Model PE: general applications
• Model UR: the industry workhorse
• Model EFX: your toughest installations

Colour can also be an important deciding factor. At Venture Plastics Distributors we supply two different colour options. These are the options and where these colours are usually used:

• White – generally used on white lines
• Yellow – usually used on yellow lines or for temporary works zones

It’s also important to note that reflective tape applications can be customised by Venture Plastics Distributors. We can supply either Class 3 or Class 4 high-visibility reflective tapes.

Once you have decided on the above elements, you can purchase these delineators from a local and trustworthy supplier. Ensure your choice of safety products partner is a company that can help guide you in your choice by providing valuable information and insight.

Step 2: Gather the Required Tools and Materials

Before beginning the installation process, make sure you have all the necessary tools and materials. Here’s a list of what you’ll need:

• FG300 Impact Resistant Delineators (with necessary accessories)
• Rubber mallet or sledgehammer
• Core Drill with appropriate drill bits
• Epoxy adhesive (optional)
• Measuring tape
• Safety goggles
• Gloves

Step 3: Plan the Delineator Placement

Determine the locations where you intend to place the FG300 delineators. Consider elements such as the flow of traffic, the curvature of the road, and the visibility needs.

Measure the spaces between delineators to guarantee appropriate alignment and spacing. Then make markings on the road with chalk to indicate the positioning of drill holes for the base.

Step 4: Drill Holes

Use a core drill with an appropriate size to create holes at the marked locations.

Step 5: Prepare the Installation Site

Clear the installation area of any debris, vegetation, or obstructions.
If installing on epoxy adhesive, clean the holes and area as thoroughly as possible to ensure proper adhesion.

Step 6: Install the Delineator Base

Take the FG300 delineator base and position it at the desired location. Ensure that the base is level and securely in place.

If you have chosen to use epoxy, then apply epoxy adhesive into the holes before inserting anchor bolts.

Insert the bolts and then place the delineator base over the anchor bolts and press it down firmly. Use a rubber mallet or sledgehammer if you want to be confident that the base is as secure as possible.

If you use epoxy allow it to cure completely as per the manufacturer’s instructions.

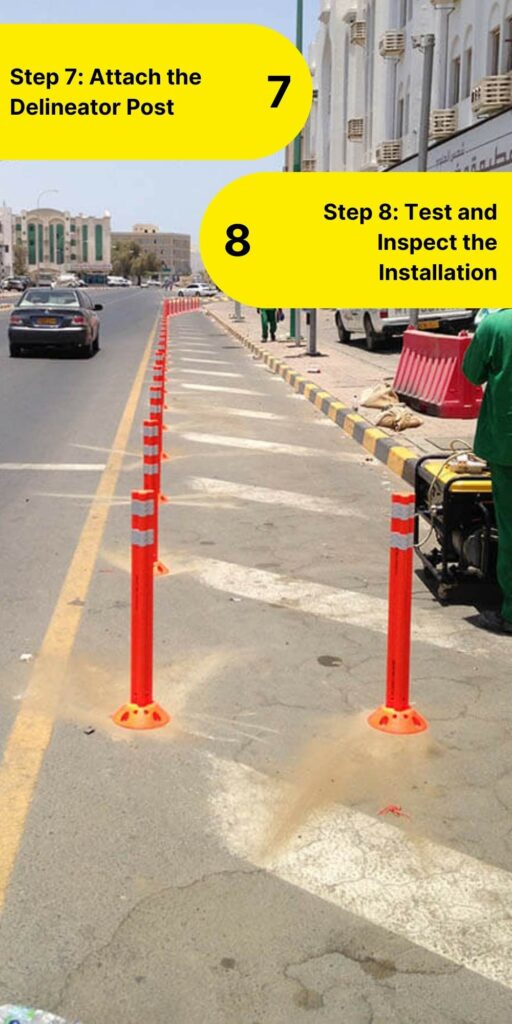

Step 7: Attach the Delineator Post

Take the FG300 delineator post and slide it into the base.

Some FG300 models come with a twist-lock feature, which ensures a secure connection between the post and the base. If your model doesn’t have this feature, use the provided screws or bolts to secure the post to the base.

Step 8: Test and Inspect the Installation

Once the delineator post is secured, step back and assess its alignment with the road. Make any necessary adjustments to ensure the delineator is straight and facing the desired direction.

Be sure to test the delineators by observing their visibility from various angles and distances. Ensure they are secure and free from any defects or damages.
